Access Point

MZ-TENO1

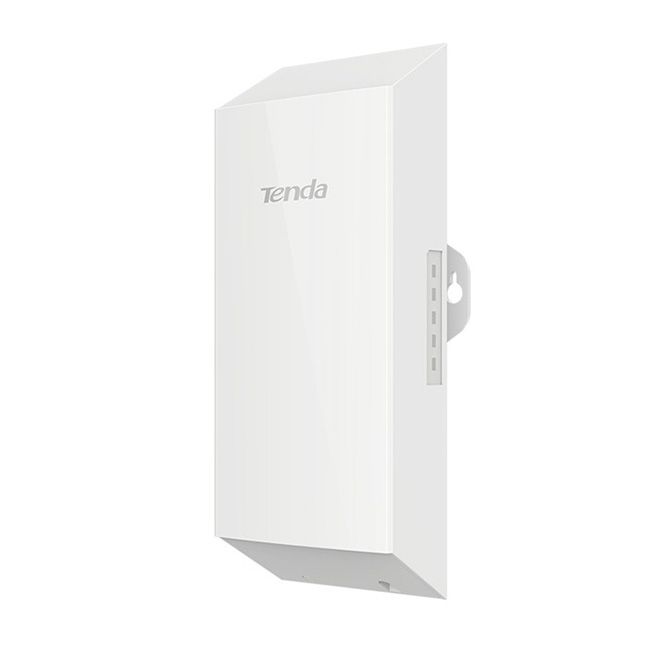

TENDA O1 2.4GHz 8dBi Outdoor Access Point

72,90 €

TENDA O1 2.4GHz 8dBi Outdoor Access Point Access Point TENDA
72.9004 72.9004 EUR
MZ-TENO1

O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.



  • Dimension: 190.35*80*67.5mm
  • Deployment: Pole Mount
  • Application Scenarios: Long range video surveillance,data transmission and WISP CPE
  • Frequency Range: 2.4GHz
  • Wireless Link Rate: 300Mbps
  • Antenna: Antennas Gain: 8dbi Antenna Beamwidth:Horizontal: 60° Vertical: 30°
  • Button: 1*Reset Button
  • Maximum Power Consumption: 2.6W
  • Waterproof Level: IP65
  • LED indicator: PoE/LAN,WiFi,LED1,LED2,LED3
  • Power Method: DC or Passive PoE
  • Passive PoE power supply: Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) up to 30 meters
  • Input Voltage: 9-12V DC
  • Reception Sensitivity: MCS0: -92dbm MCS7: -72dbm
  • Operating Mode: AP/Station/WISP
  • Standard&Protocol: IEEE 802.11b/g/n
  • Enable/Disable Wireless Radio: Support
  • SSID Hidden: Support
  • Wireless Client isolation: Support
  • SSID Isolation: Support
  • Client Limitation For SSID: Support
  • Wireless Access Control: Support
  • Weak Signal Client Limitation: Support
  • Transmit Power: Adjustable power by 1dBm
  • WMM Capable: Support
  • APSD Capable: Support
  • Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
  • Transparent Bridge: Support
  • VLAN Tagging for SSID: Support
  • DHCP Server: Support
  • VPN Pass-through: PPTP,L2TP
  • Remote Web access: Support
  • Schedule Reboot: Support
  • Page Timeout: Support
  • Ping Watchdog: Support
  • Dyndns:noip, dyndns.org
  • Network Diagnoses: Ping, Traceroute, Signal Scan Time&Date SettingSupport Firmware UpgradeSupport Backup/Restore ConfigurationSupport Username ManagermentSupport
  • Syslog: Support
  • Managed By Controller: PC Software -- CPE Assitant
  • Package Content: 1*Outdoor Point to Point CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide TemperatureOperating Temperature:-30? ~ 55? Storage
  • Temperature: -40° ~ 70° HumidityOperating Humidity: 10%~90% non-condensing Storage
  • Humidity: 10%~90% non-condensing
  • Default Settings: Default login IP:192.168.2.1 Default Login Username:admin Default Login Password:admin
  • Certification: FCC/CE/RoHS
mz-teno1--000202

Description:

O1 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 8dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.



  • Dimension: 190.35*80*67.5mm
  • Deployment: Pole Mount
  • Application Scenarios: Long range video surveillance,data transmission and WISP CPE
  • Frequency Range: 2.4GHz
  • Wireless Link Rate: 300Mbps
  • Antenna: Antennas Gain: 8dbi Antenna Beamwidth:Horizontal: 60° Vertical: 30°
  • Button: 1*Reset Button
  • Maximum Power Consumption: 2.6W
  • Waterproof Level: IP65
  • LED indicator: PoE/LAN,WiFi,LED1,LED2,LED3
  • Power Method: DC or Passive PoE
  • Passive PoE power supply: Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) up to 30 meters
  • Input Voltage: 9-12V DC
  • Reception Sensitivity: MCS0: -92dbm MCS7: -72dbm
  • Operating Mode: AP/Station/WISP
  • Standard&Protocol: IEEE 802.11b/g/n
  • Enable/Disable Wireless Radio: Support
  • SSID Hidden: Support
  • Wireless Client isolation: Support
  • SSID Isolation: Support
  • Client Limitation For SSID: Support
  • Wireless Access Control: Support
  • Weak Signal Client Limitation: Support
  • Transmit Power: Adjustable power by 1dBm
  • WMM Capable: Support
  • APSD Capable: Support
  • Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
  • Transparent Bridge: Support
  • VLAN Tagging for SSID: Support
  • DHCP Server: Support
  • VPN Pass-through: PPTP,L2TP
  • Remote Web access: Support
  • Schedule Reboot: Support
  • Page Timeout: Support
  • Ping Watchdog: Support
  • Dyndns:noip, dyndns.org
  • Network Diagnoses: Ping, Traceroute, Signal Scan Time&Date SettingSupport Firmware UpgradeSupport Backup/Restore ConfigurationSupport Username ManagermentSupport
  • Syslog: Support
  • Managed By Controller: PC Software -- CPE Assitant
  • Package Content: 1*Outdoor Point to Point CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide TemperatureOperating Temperature:-30? ~ 55? Storage
  • Temperature: -40° ~ 70° HumidityOperating Humidity: 10%~90% non-condensing Storage
  • Humidity: 10%~90% non-condensing
  • Default Settings: Default login IP:192.168.2.1 Default Login Username:admin Default Login Password:admin
  • Certification: FCC/CE/RoHS
